excav PILOT at a glance

Our mobile 3D-GNSS assistance system consists of several compact hardware units that can be flexibly

and easily installed on a wide variety of construction machines and tools using magnets and suction cup mounts.

excav GNSS-Sensor Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

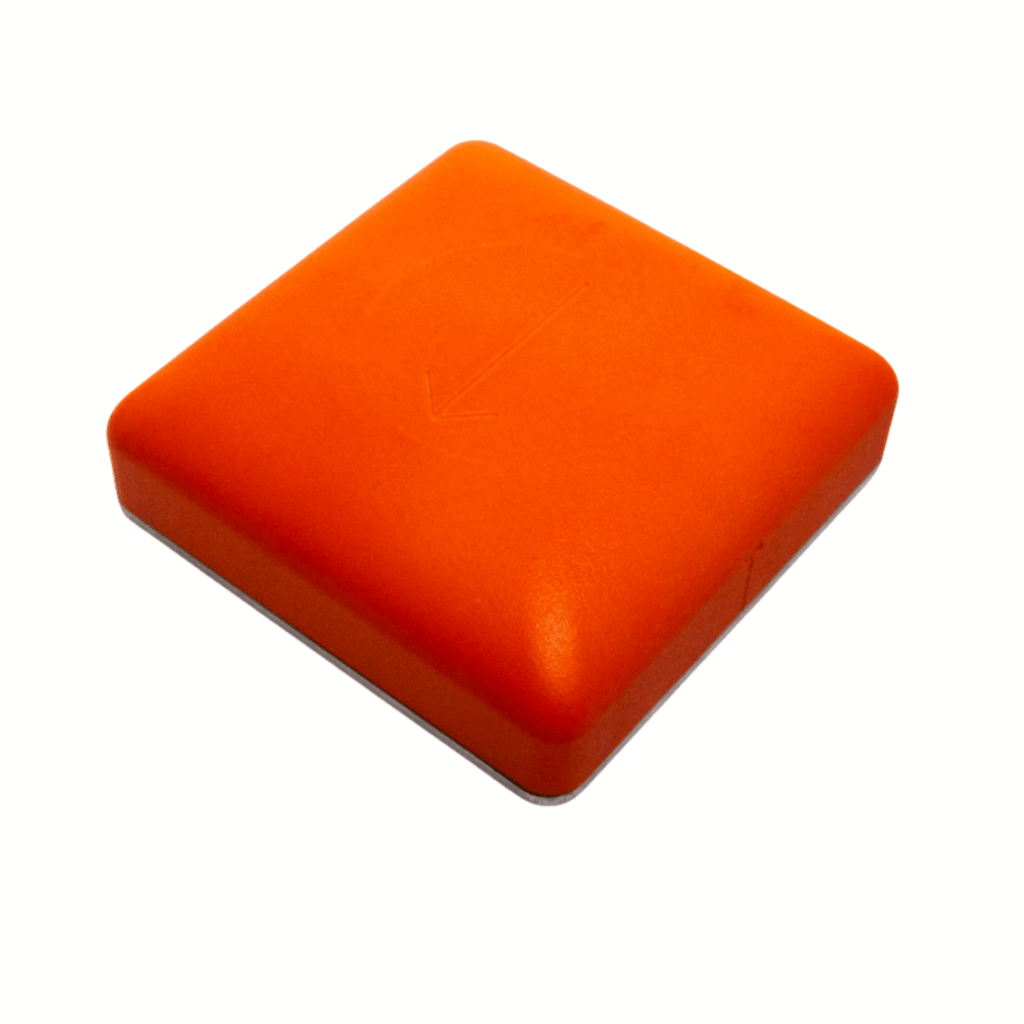

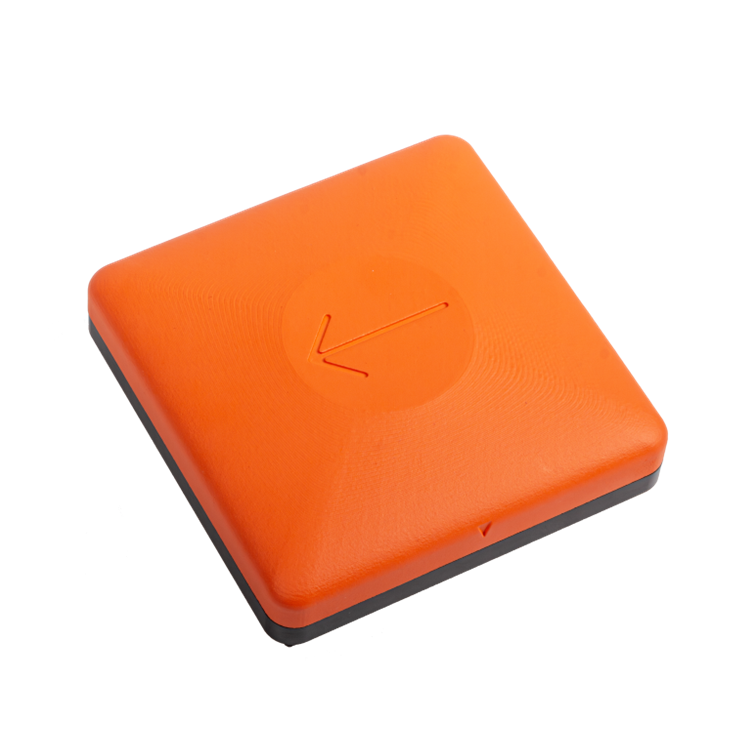

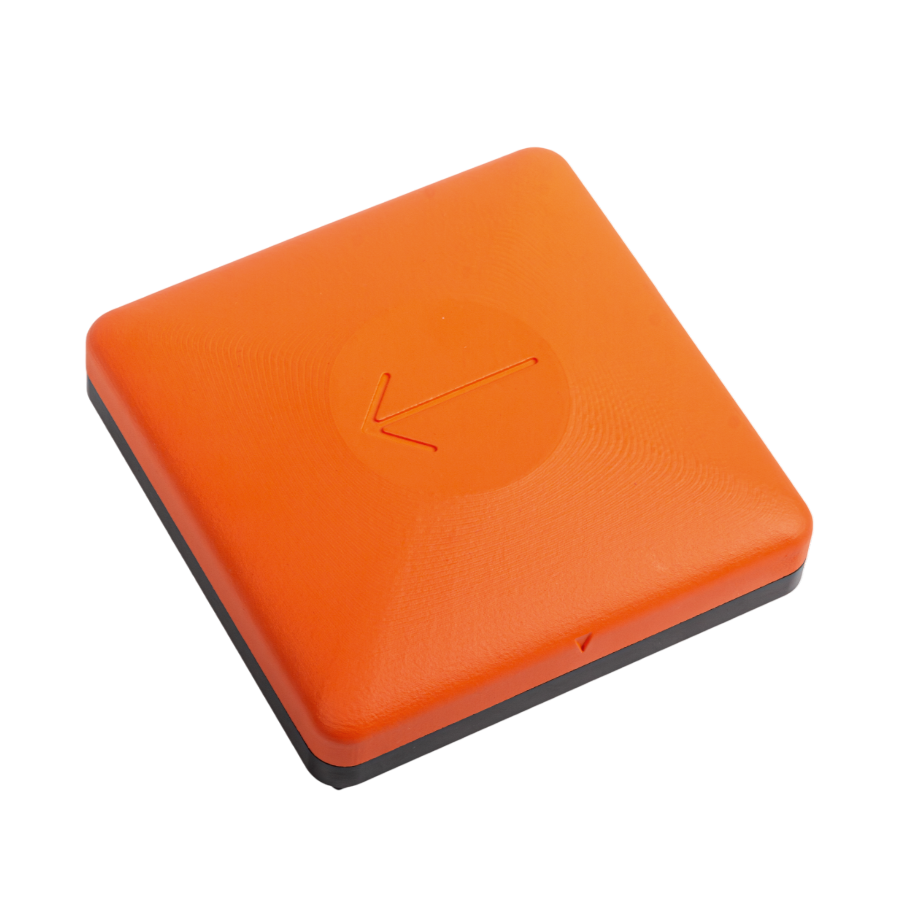

GNSS sensor

The excav PILOT is the only GNSS assistance system that requires only a single GNSS sensor on the excavation bucket or tool.

excav LED-Anzeigekreuz Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

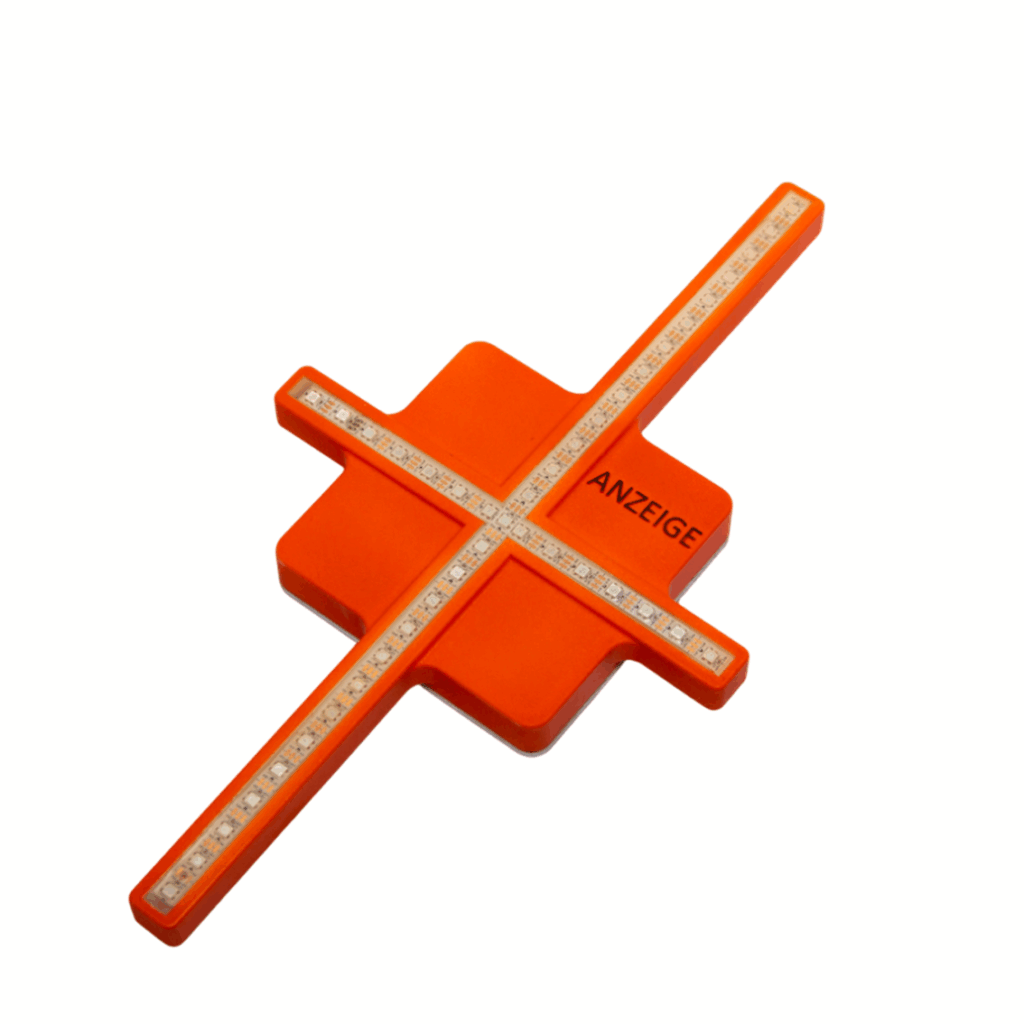

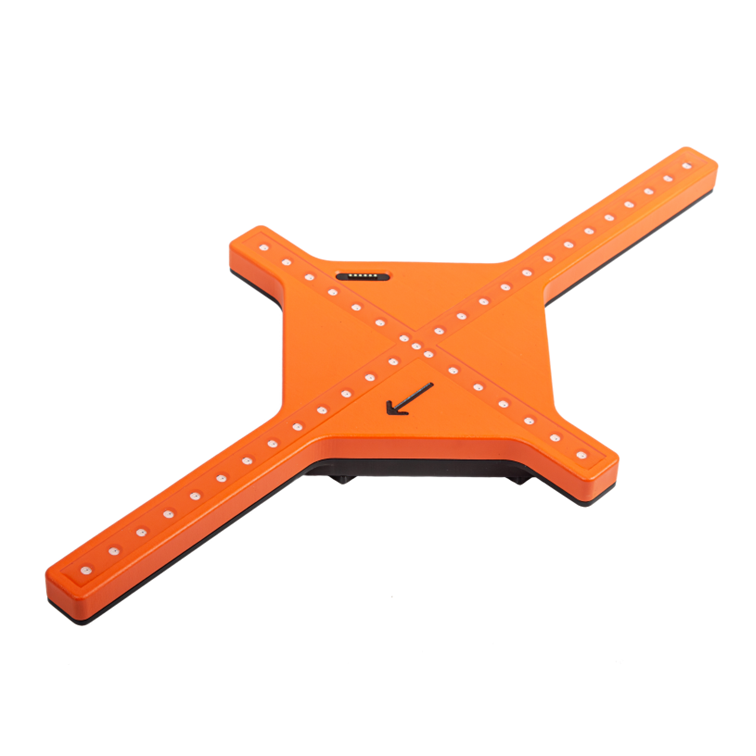

LED indicator cross

The LED indicator cross serves as an optical navigation aid device to read the height and inclination deviation while working on site.

Samsung Android Tablet Ansicht Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG 3D-Anwendung 2025

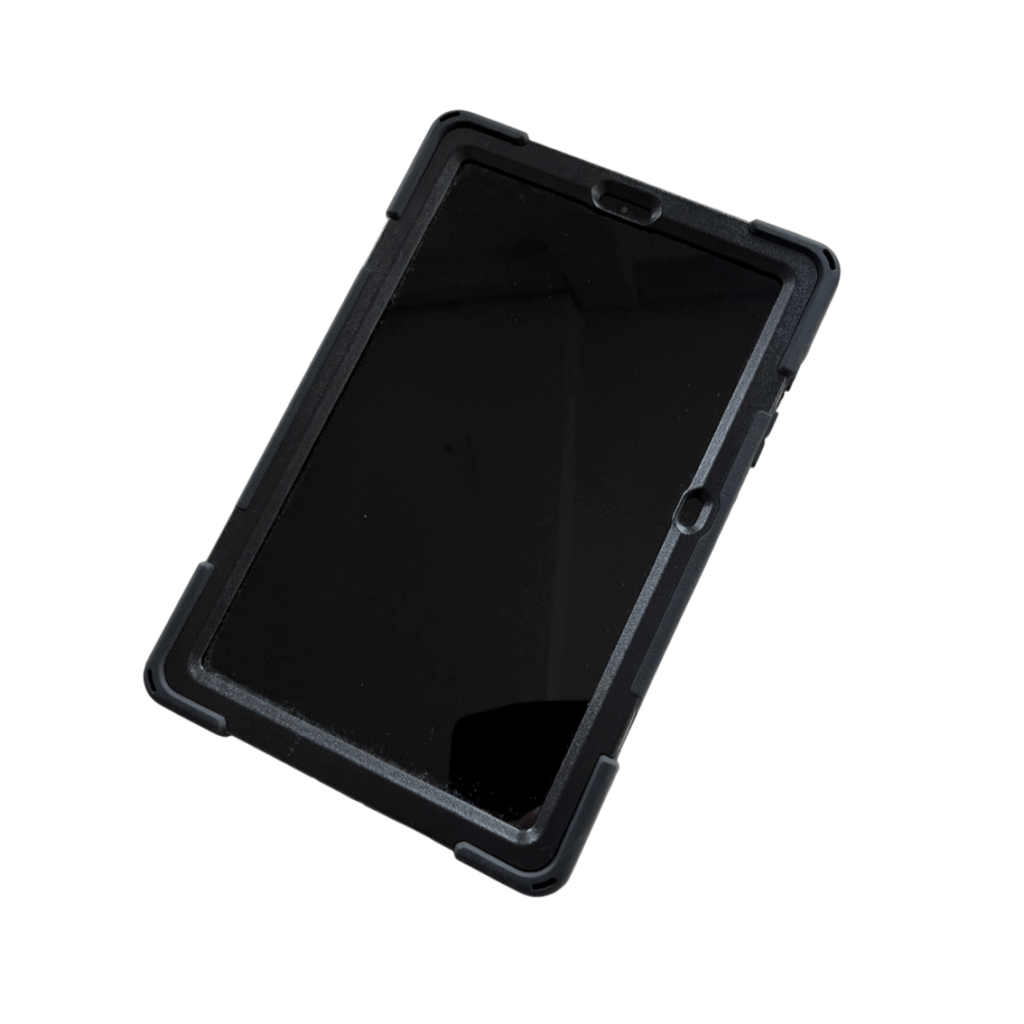

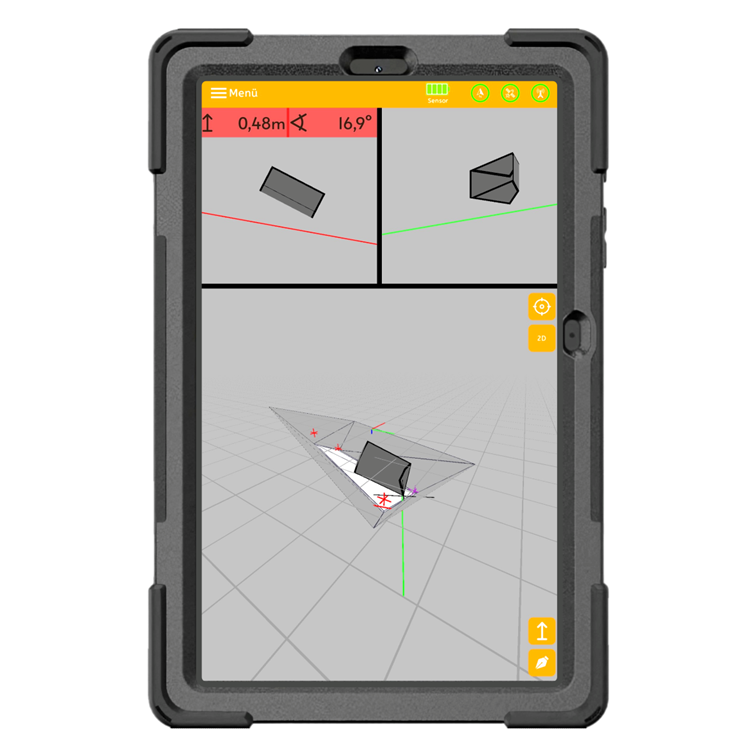

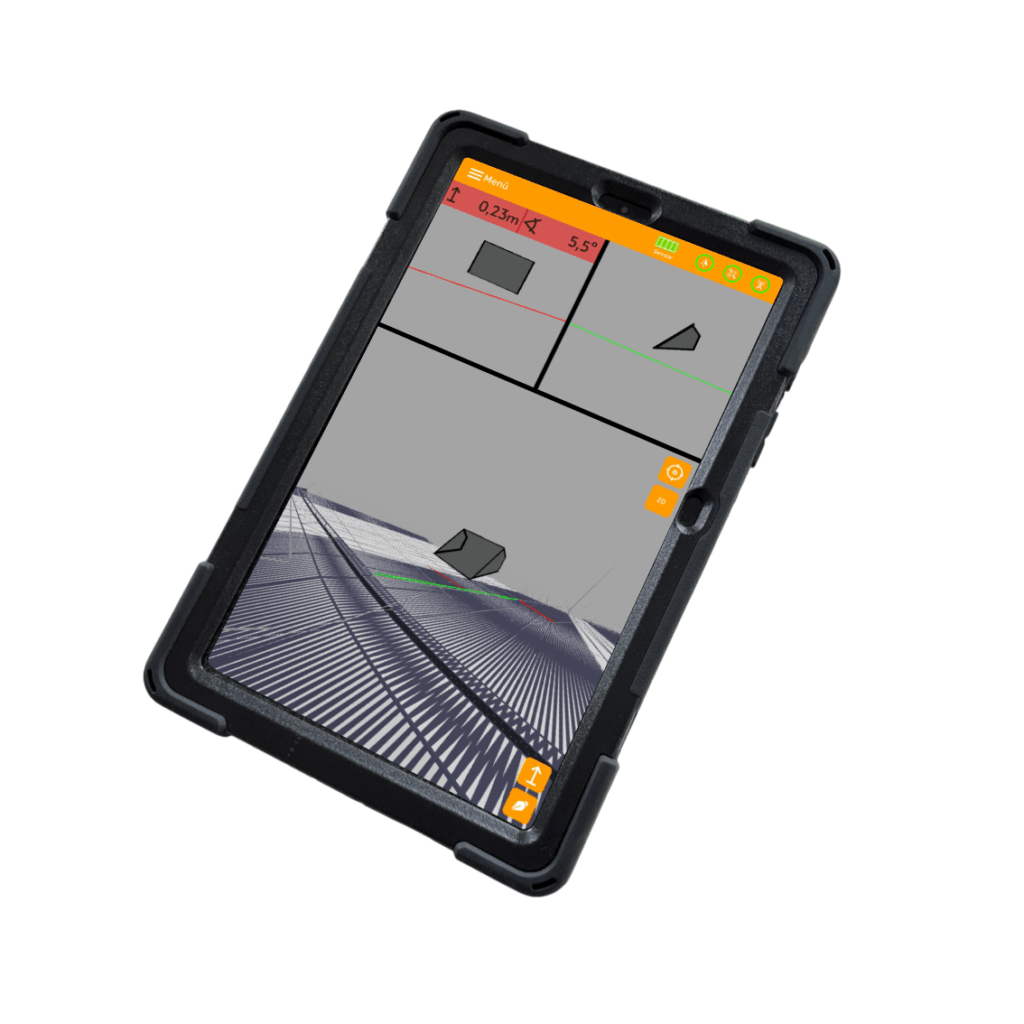

Android tablet

The modern Samsung Android user tablet is provided including a current app version as well as a protective case and tablet holder.

excav Messstab (Survey-Stab) Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

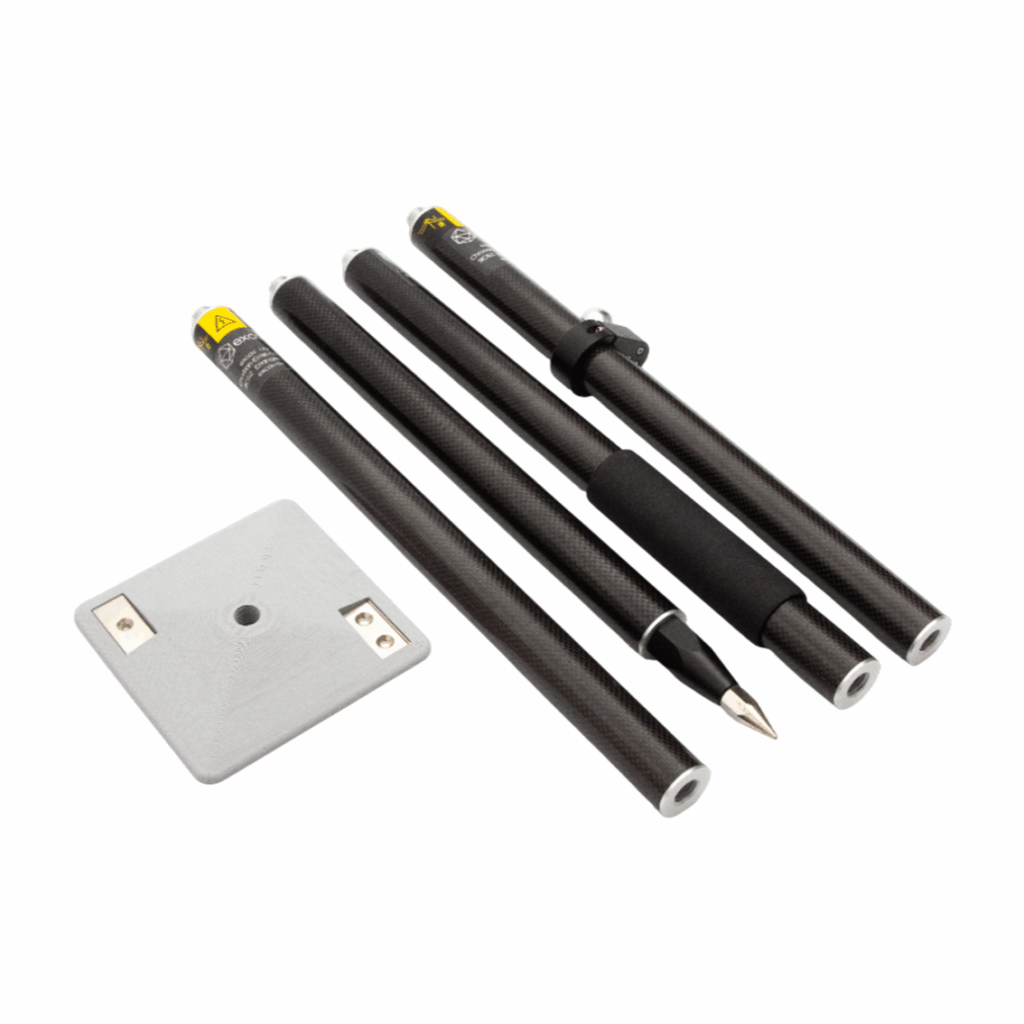

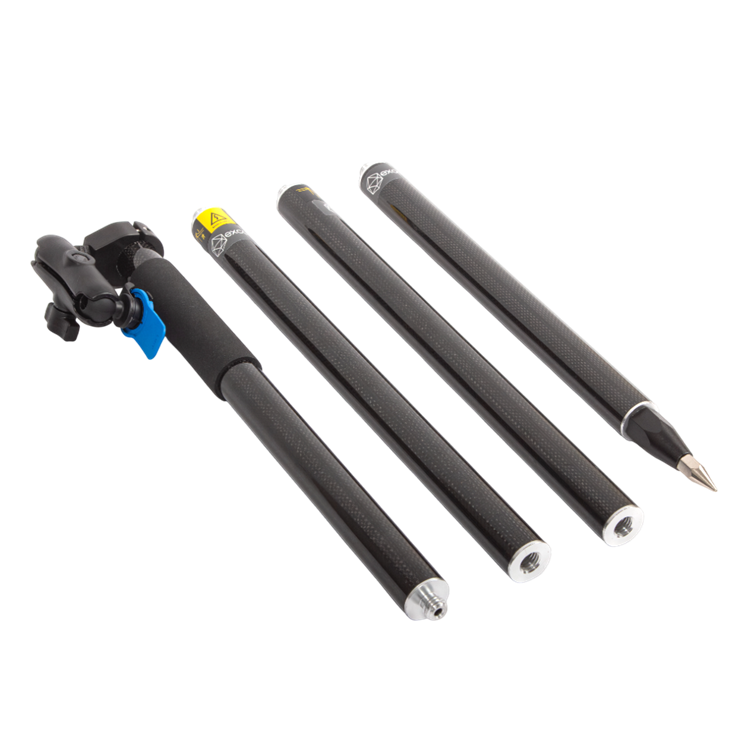

Survey rod

The measuring rod supplied with the device allows you to set and record measuring points in order to create a fully virtual 3D-workplace.

excav Gesamtsystem im Transportkoffer Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

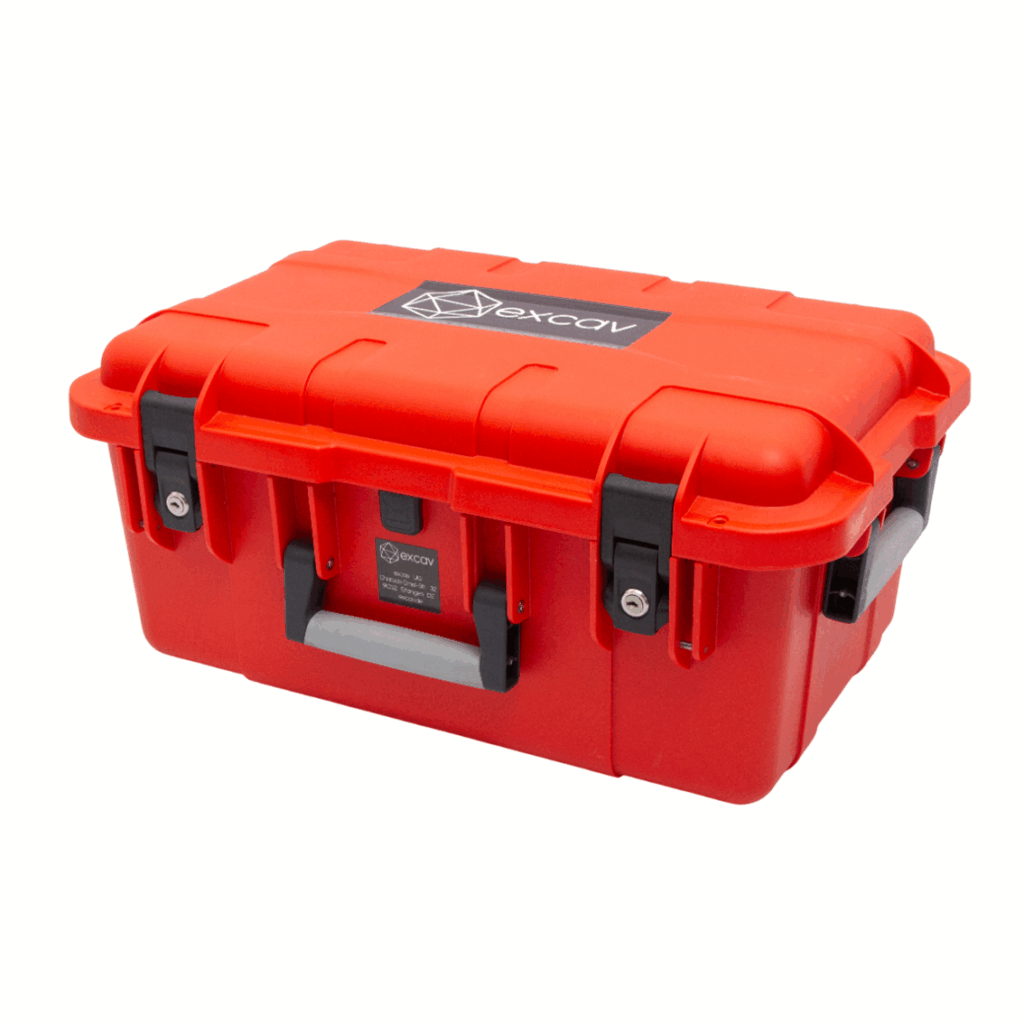

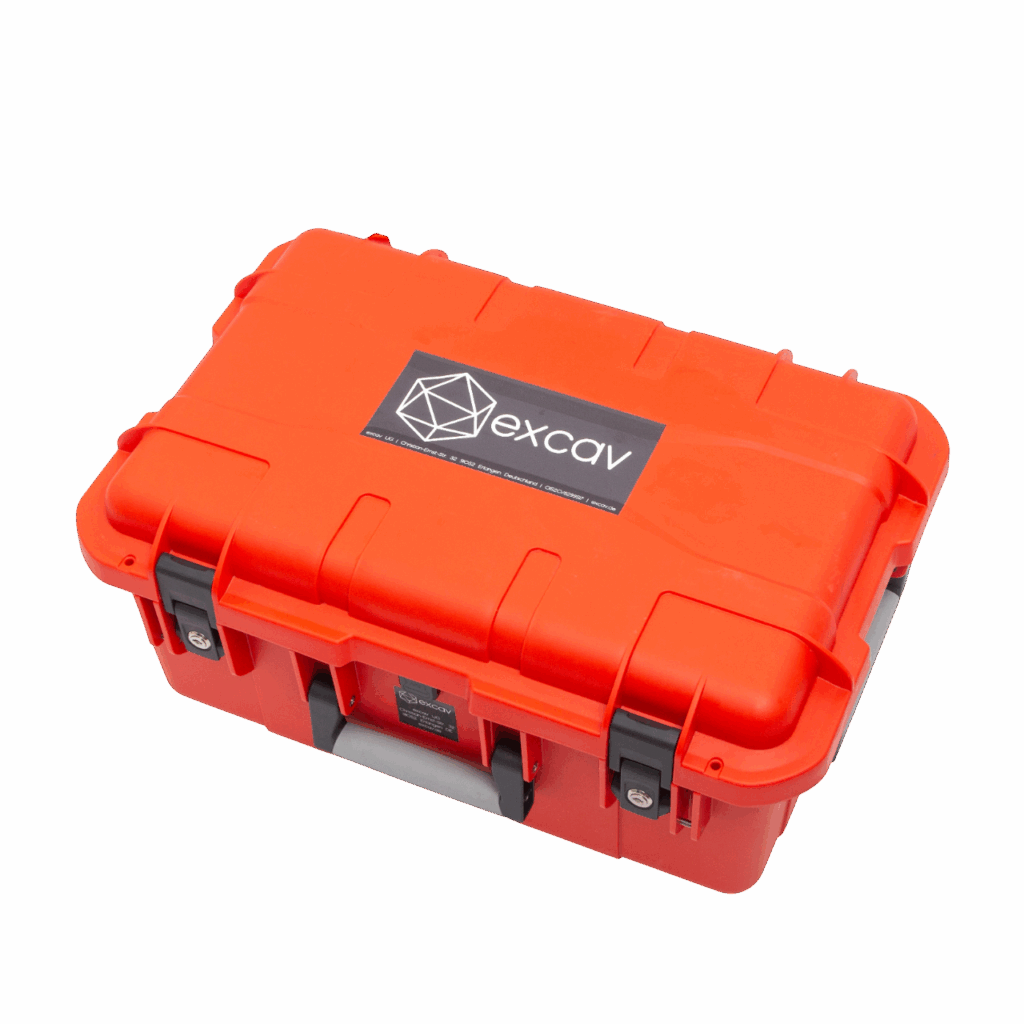

Hard-shell suitcase

The hard-shell case including the foam inlets offers enough space for all the hardware and optional accessories for the excav PILOT.

excav Metallrahmen Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG
Accessories

In addition to the excav PILOT, accessories such as a folding rule, a tablet holder and (optionally) a metal frame are included.

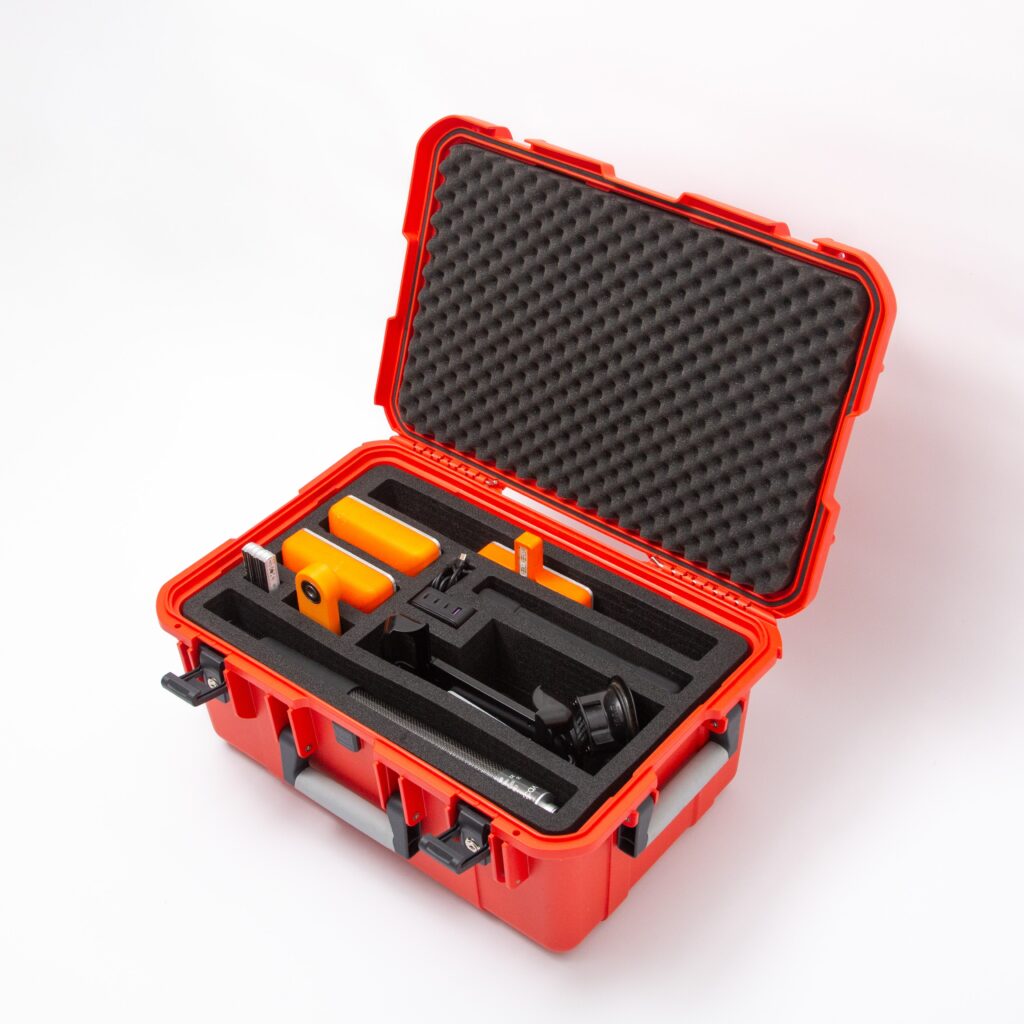

excav PILOT and accessories

The excav PILOT mobile 3D-GNSS assistance system is delivered as a fully complete and ready system – including

all hardware, an intuitive 3D app, a robust transport case for the construction site, and accessories for calibration.

excav Gesamtsystem im Transportkoffer Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

Product

excav PILOT

Mobile 3D-GNSS assistance system

Available for only 16,750 EUR per system - excl. VAT.
Scope of delivery of the complete system: excav GNSS sensor, excav LED display cross, survey pole including sensor plate, Android tablet with protective cover and current excav PILOT 3D-app, tablet holder for survey pole and driver's cab, USB-C charging cable for tablet, 3 x USB-C magnetic charging cables for system elements, charger including power plug, folding rule, tripod adapter, hard-shell transport case including foam inlets.

Function

3D DTM import function

Workplace simple and intuitive in 3D

3D DTM application already integrated into the system
Our newly developed 3D DTM application is already integrated for optimal workflows when importing DTM files. In addition to common formats like PDF, three-dimensional workspaces and construction plans can also be created, saved, and imported in LandXML format.
Samsung Android Tablet Ansicht Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG 3D-Anwendung 2025
excav GNSS-Sensor Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

Hardware

Additional GNSS sensor

One sensor for all applications

Additional excav GNSS sensor for 2,999 EUR

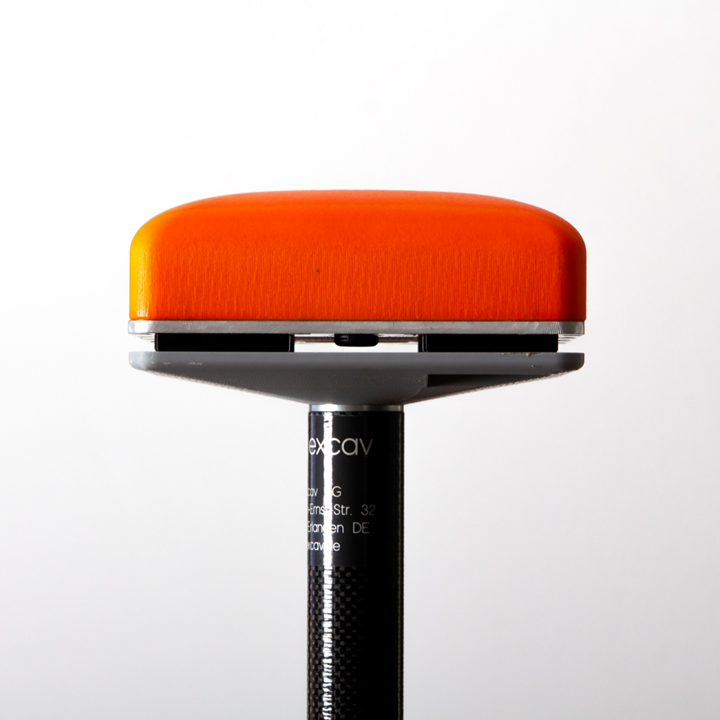

The GNSS sensor, which is already available as standard in the excav PILOT, is available on request in addition to the basic equipment as an additional GNSS sensor or optional as base station for generating your own correction data on your site.



Service

excav Care

Always stay safely on schedule

Support service for 479.00 EUR annually - excl. VAT.
Annual cost: EUR 479.00 excl. VAT per system. Immediate express delivery of a replacement part after the repair is registered. Free delivery of the systems critical components for the repair. Available upon request with any order and can be canceled annually.
KI-Bild mit ChatGPT Darstellung excav Care Service für das 3D-GNSS-Assistenzsystem excav PILOT der excav UG
Symbolbild KI-generiert mit ChatGPT SIM-Karte für mobile Daten zur Verwendung des excav PILOT der excav UG

Service

SIM card service

We ensure your connectivity

SIM card service by excav for 14.90 EUR per month
A SIM card is already included in the Android tablet and provided by us for communication purposes. Each tablet comes standard with an EU-wide roaming SIM card. This gives you access to the best available network in the European Union, as well as in Non-EU-countries such as Norway, Switzerland, the United Kingdom, and Iceland. The provided roaming SIM card comes with a 1.2 gigabyte data allowance and can be activated and canceled monthly.

Service

External RTK correction data

Correction data throughout Germany

Purchase of correction data for 19.90 EUR per month
Use precise and reliable RTK correction data available throughout Germany or individually for each other federal state via the newly integrated NTRIP functionality for your construction activities.
excav PILOT Messstab (Survey-Stab) mit GNSS-Sensor für das Messen von Punkten im Tiefbau auf der Baustelle Bild in Quadratform
excav Metallrahmen für GNSS-Sensor Mobiles 3D-GNSS-Assistenzsystem excav PILOT für präzise Erdarbeiten im Tiefbau excav UG

Zubehör

excav PILOT accessories

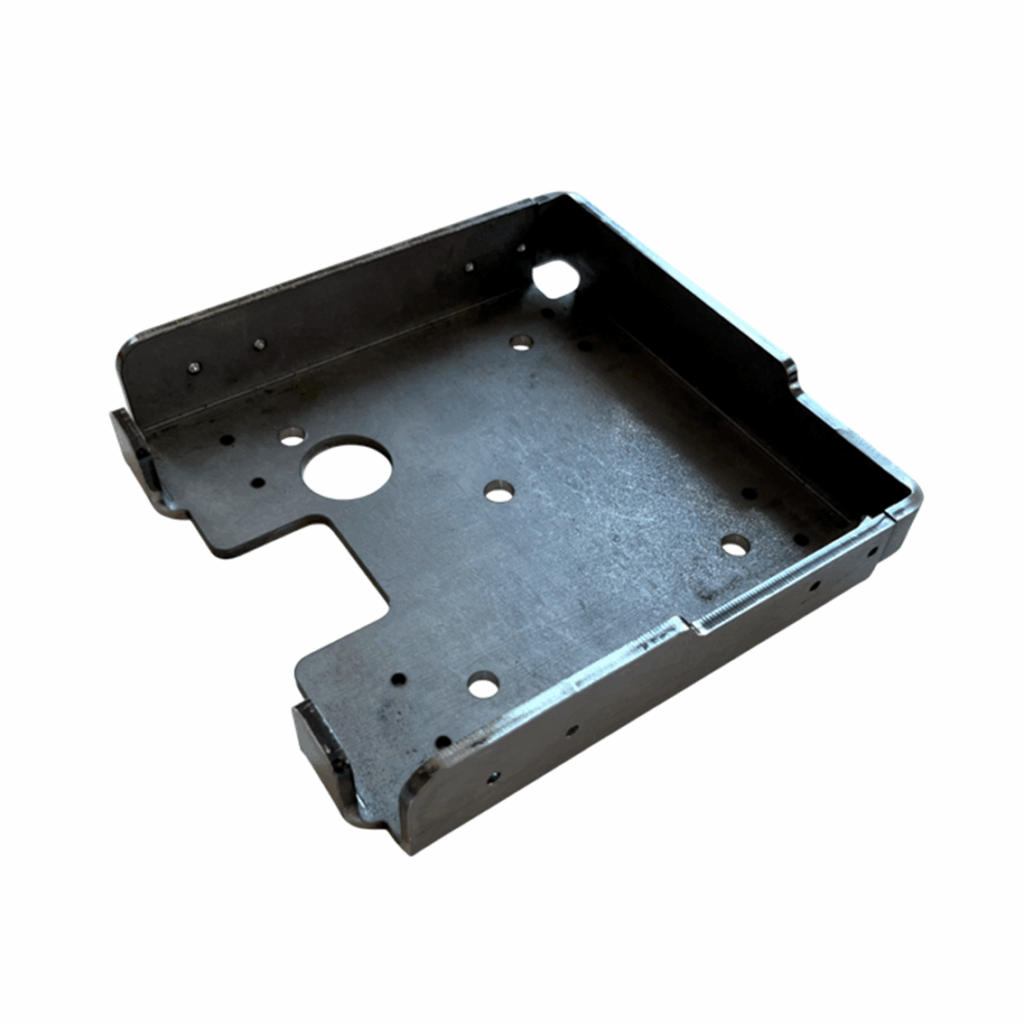

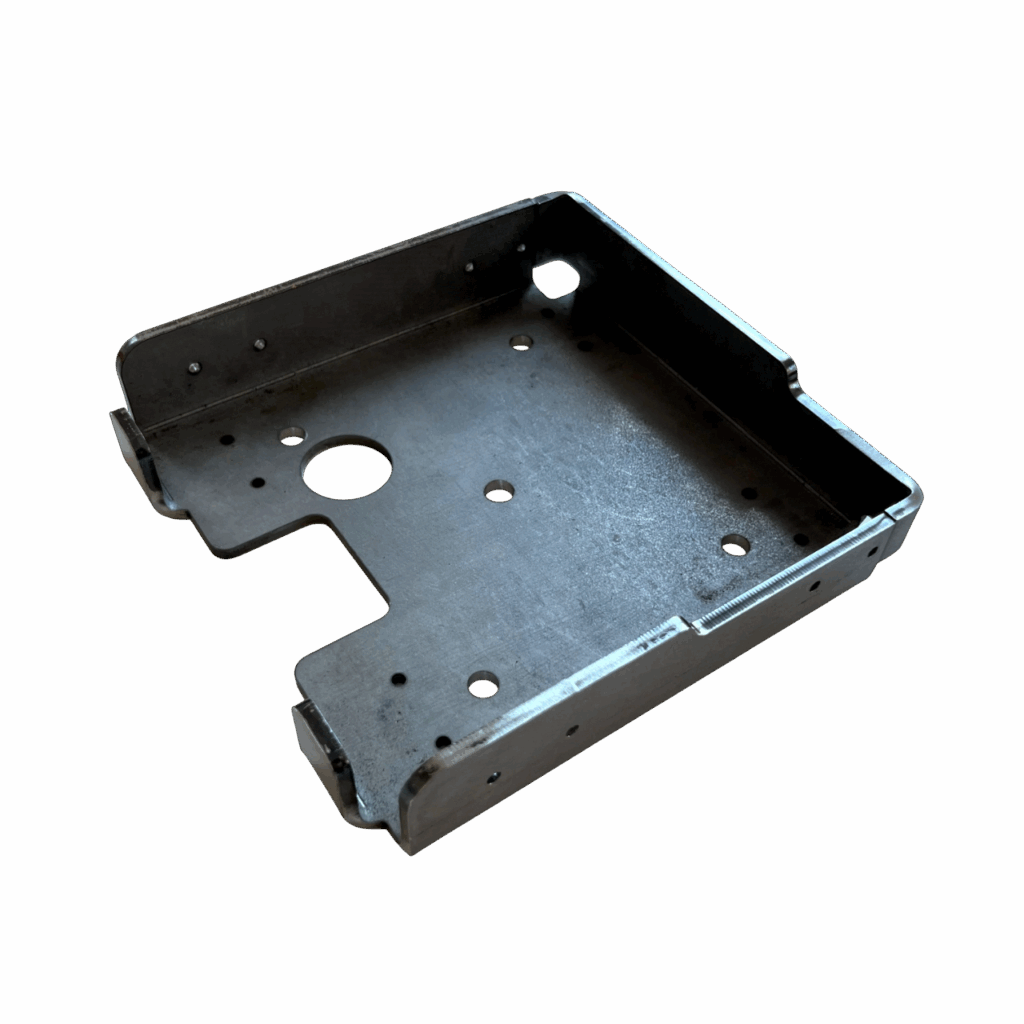

Metal frame for the GNSS sensor

Available for only EUR 45.00 per unit - excl. VAT.
The metal protective frame can be welded to any excavator bucket or tool and serves to protect the GNSS sensor from heavy material. It also minimizes potential bucket calibration errors, as the sensor remains in exactly the same position when reloading your datafile.
